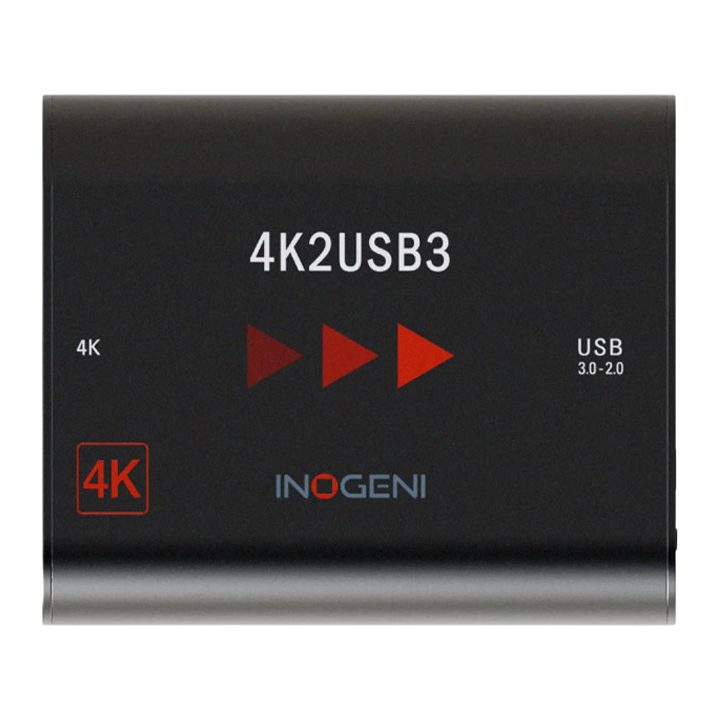

Inogeni | 4K2USB3 | HDMI 4K to USB 3.0 capture card

Main feature
Description: Converts 4K Ultra HD HDMI (video and audio) to USB 3.0 without compression.

Video input
Connector & video resolutions: 1x HDMI 1.4a, 4K UHD (3840/4096×2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1280×1024, 1280×960, 1280×800, 1024×768, 800×600, 640×480
Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.
Color space: RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
Sampling rate: 297 MHz
Embedded audio: Ch 1&2 48kHz LPCM

Video output
Color space: RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
USB - Connector & video resolutions: 1x USB 3.0 Type-B
USB - CODECs: YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0 MJPEG for USB 2.0*
Notes for MJPEG for USB 2.0: * Devices having serial numbers >= 4K2037XXX will support MJPEG over USB 2.0. Otherwise, it will be uncompressed video.
USB - Video scaler: Automatic hardware based
USB - Color space conversion: Automatic hardware based
USB - Sampling conversion: Automatic hardware based
USB - Frame rate conversion: Automatic hardware based

Audio
Analog audio I/O: 2-channel LPCM audio from HDMI
Audio input connector: CH1&2 48kHz LPCM feed from HDMI

Compatibility
Cisco Webex Compatible:
Easily programed macros in your Webex room device.

Cisco Webex Macros and guides –> USB Mode landing page

Native Webex implementation available in Q2 CY2022.
Intuitive interface on Webex Touch 10 or Webex Navigator.
The 4KX-PLUS is compatible with Webex Devices for multiple displays.
The 4K2USB3 is compatible with Webex Devices for one display.

Macro and native

• Webex Room Kit
• Webex Room Kit Plus
• Webex Room Kit Pro
• Webex Room 55
• Webex Room 70

Macro only

• Cisco MX700
• Cisco MX800
• Cisco SX80

Operating system: Windows 7 and above (32/64-bit), macOS 10.10 and above, Linux (kernel v2638)
Consumed USB tiers: 1 tier, The device is a simple USB composite device which include video, audio, and control interfaces. It will consume 1 tier.
Minimum host requirements: USB 2.0 port – We recommend USB3.0 for uncompressed video, 4GB RAM, Intel Core i5 or equivalent, Graphic card with dedicated memory
Motherboard: Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic
Supported cameras: Cameras and camcorders with an HDMI output
Software compatibility: UVC-compliant Runs with all software compatible to DirectShow, AVFoundation and V4L2 Compatible to: Teams, Zoom, Webex, Google Meet, etc.

Physical details
Dimensions (W x L x H): 9.7 cm x 7.0 cm x 2.3 cm
Power supply: Powered by USB (5V / 716mA)
Weight: 120 g (0.26 lb)
Operating temperature: 0° to 45° C, 32° to 113° F
Storage temperature: -40° to 105° C, -40° to 221° F
Relative humidity: 0% to 90% non-condensing
