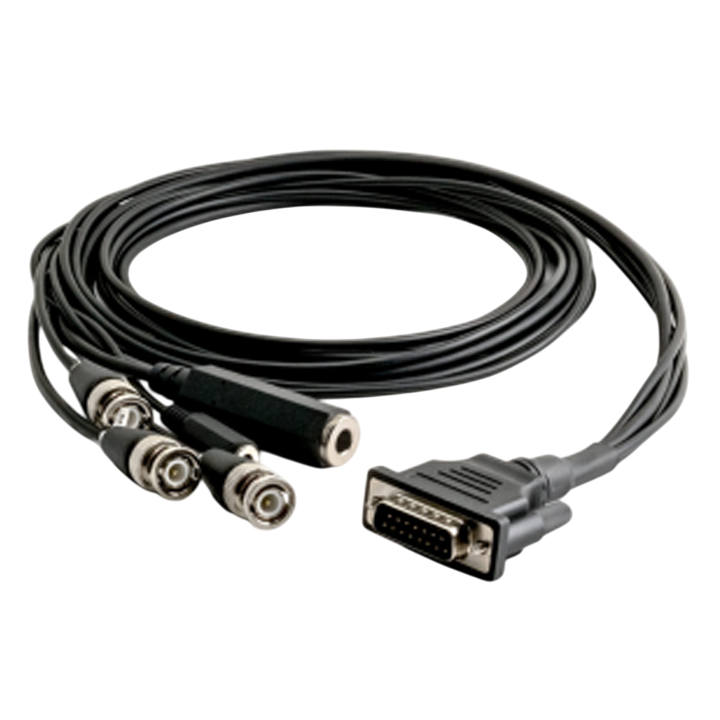

TC Electronic Clarity M Stereo | Stereo Audio Meter | AES IN + GPIO cable

A SUB-D-15 breakout cable is included with the Clarity M for connection to
external digital audio devices, as well as GPIO connection. 3 BNC connectors
accept signals from digital mixing consoles or from an audio interface via S/PDIF
by using the included BNC-to-RCA adapter (Stereo version has 1 BNC connector).
See Chapter 13 for pin assignment details.

To connect to an AES/EBU-based device, a BNC-to-XLR adapter will be necessary.
For surround sound use, 3 adapters will be needed. We recommend the Neutrik
NA2FBNC adapter for this purpose. One BNC-to-XLR adapter is included with the
Stereo model.

GPIO is connected via a dedicated 1/8" TS output and a stereo 1/4" TRS input.
These can be used, for example, to trigger Stop/Play or Measurement RESET
commands remotely.
