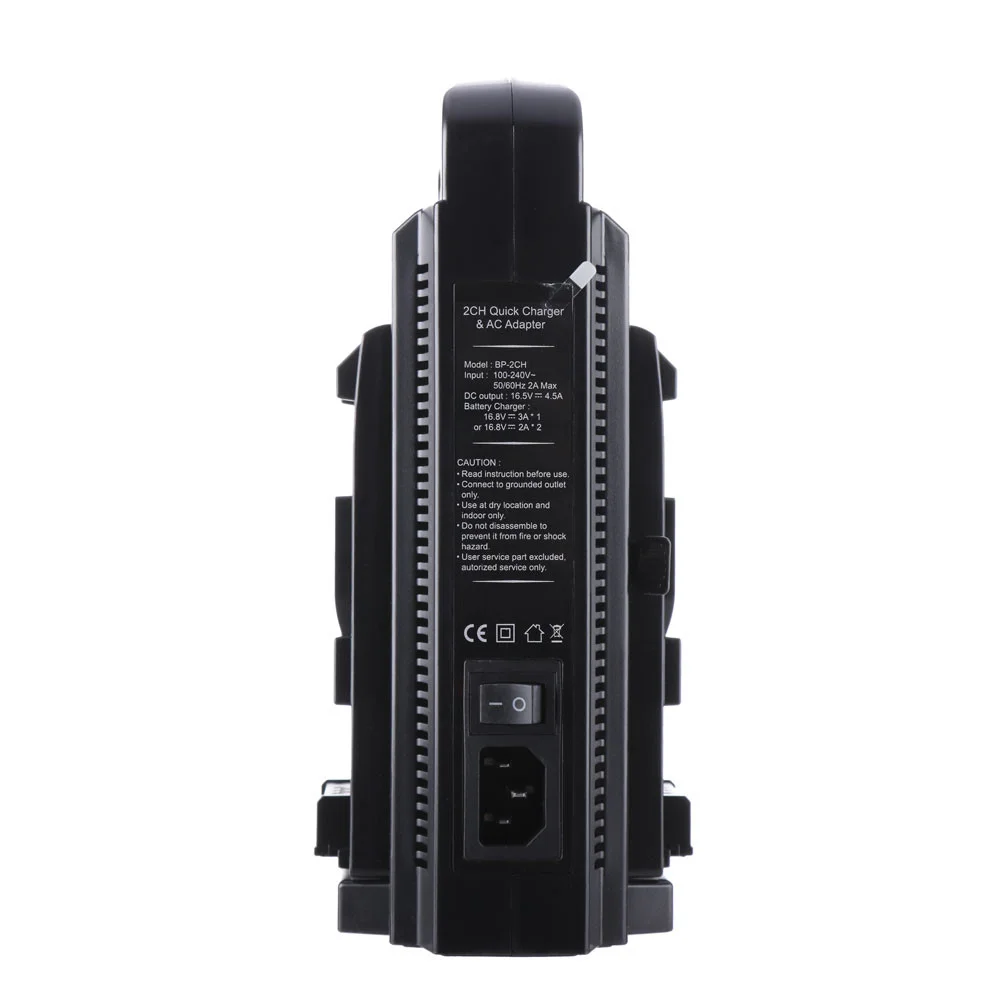

BP-2CH | Dual Quick Battery Charger | 14.4V/14.8V for V Mount Battery

Specifications



Input: 100-240V-50/60Hz 2A Max DC Output: 16.5V 4.5A



Battery Charger: 16.8V 3A 1 (charging 1pc battery) 16.8V2A 2(charging 2pcs batteries)

Operating ambient temperature:0°C-40°C

Operating ambient humidity:20%-90%RH



Dimension: 141*100*225mm (L x W x H)



Weight: 1150g



Features

BP-2CH charger can charge for 14.4V/14.8V V-mount lithium-ion battery.

No need to switch operation when output voltage is 100-240V.

Quick charge for single lithium-ion battery, sequential nominal charge for 2pcs lithium-ion batteries.

Equipped with DC output, it can be used as DC supply power for camcorder, portable VTR and other ENG machine, etc.

A fully charged lithium-ion battery can be used as backup power when there’s no AC power input, and supply sequential DC output by XLP 4P connector.

BP-2CH charger is controlled by MCU (Micro Controller Unit), charging method is by constant current/constant voltage, which is reliable and efficient.



Product Introduction



1 AC Power

2 Charging State LED

3 Battery Online LED

4 Discharging State LED

5 DC output(XLP connector 4pin female)

6 Support Stand

7 Battery Release Lever

8 Charging Connector 9 AC Power Switch

9 AC Power Switch

10 AC Socket

11 Radiator Fan
