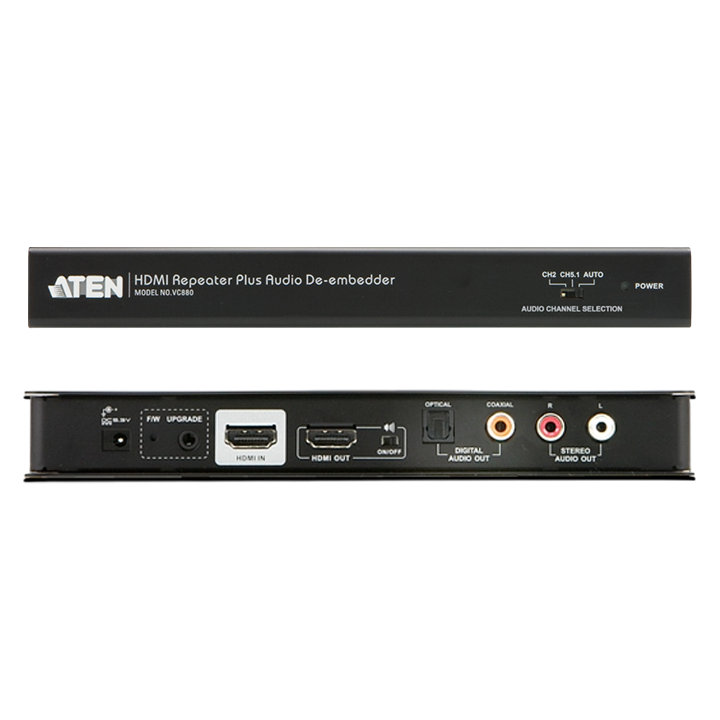

ATEN | VC880 | HDMI Repeater Plus Audio De-embedder
Art. number 1002550.00

ATEN | VC880 | HDMI Repeater Plus Audio De-embedder

From 200 kr

Weight: 0.46 kg

Dimensions: 20 × 8 × 2.8 cm

The VC880 is an HDMI Repeater with an added audio de-embedder that extracts and converts the audio signal from the HDMI input. This means that as well as the repeated HDMI audio and video signal output, users can also choose between analog stereo audio via RCA connectors or digital audio via optical or coaxial connectors as an additional high quality audio output. With support for 3D TV formats, the VC880 is ideal for users who want to enjoy high defi nition video with their choice of high defi nition audio output on TVs, projectors, A/V receivers or speakers.

  • Extracts HDMI audio signal and outputs as additional audio source
  • Supports optical / coaxial digital audio and analog stereo audio*
  • Superior Video Quality – up to 1920×1080 (1080p)
  • Repeats HDMI input signal up to 15 meters

In stock

Video Input
Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 Ω
Max. Distance: 3m at 1920*1080@60 (4:4:4)

Video Output
Interfaces: 1 x HDMI Type A Female (Black)
Impedance: 100 Ω
Max. Distance: 15m at 1920*1080@60 (4:4:4)

Video
Max. Data Rate: 6.75 Gps (2.25 Gbps Per Lane)
Max. Pixel Clock: 225 MHz
Compliance: HDMI (3D, Deep Color), HDCP Compatible
Max. Resolution: Up to 1920 x 1080

Audio
Output:
1 x HDMI Type A Female (Black);
1 x Toslink (Black);
1 x RCA (Orange);
2 x RCA (Red/White);

Connectors
Power: 1 x DC Jack

Power Consumption
DC5.3V:2.25W:11BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental
Operating Temperature: 0 - 50 ºC
Storage Temperature: -20 - 60 ºC
Humidity: 0 - 80% RH,  Non-Condensing
