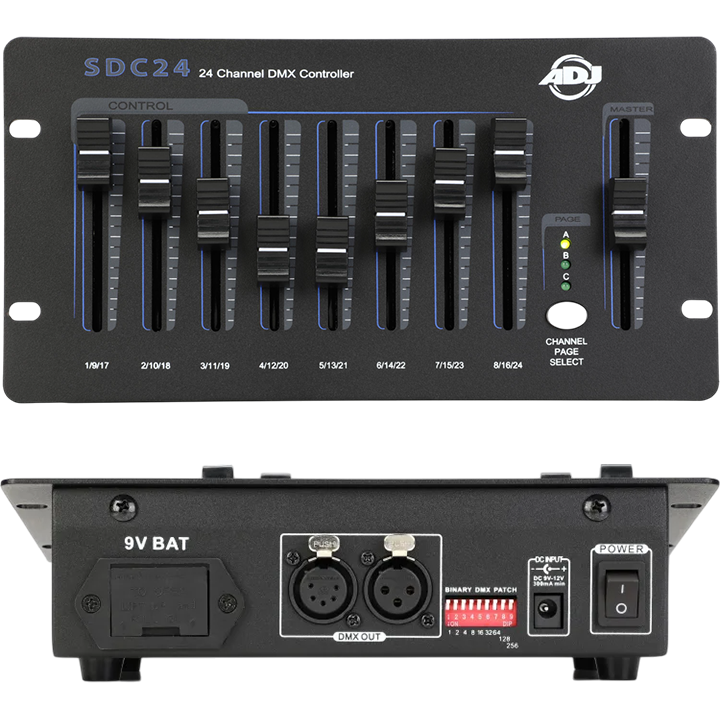

ADJ | SDC24 | 24 Channel DMX Controller
Art. number 200843

ADJ | SDC24 | 24 Channel DMX Controller

From 250 kr

Weight: 1.02 kg

Dimensions: 23 × 12 × 7 cm

The SDC24 is a basic 24-channel DMX Controller with 5-pin and 3-pin DMX out put and can be controlled by AC or DC power.

In stock

Specifications

Features:

  • 8 individual channel faders and 1 master fader
  • 24 DMX channels
  • Compact, portable design
  • 3-Pin and 5-Pin XLR output
  • Battery Type: PP3 9V (not included)

Control / Connection:

  • DIP Switches To Set Starting DMX Channel
  • 3pin 5pin DMX Outputs
  • On/Off Switch
  • Channel Page button with Indicator LED's
  • DC9V-12V Power Supply Input
  • 9V Battery slot

Size / Weight:

  • Length: 4.73” (120mm)
  • Width: 9.06” (230mm)
  • Height: 2.23” (56.66mm)
  • Weight: 1.86 lbs. (0.84kg)

Electrical:

  • DC9V-12V 300mA min or 9V Battery (Not Included)
  • Power Consumption: DC9V 40mA 0.36W,  DC12V 40mA 0.48W

Approvals / Ratings:

  • CE Approved
  • cETLus (Control # 5014475)
  • IP20

Included Accessories:

• 9V 1A Power Supply with plug adapters
